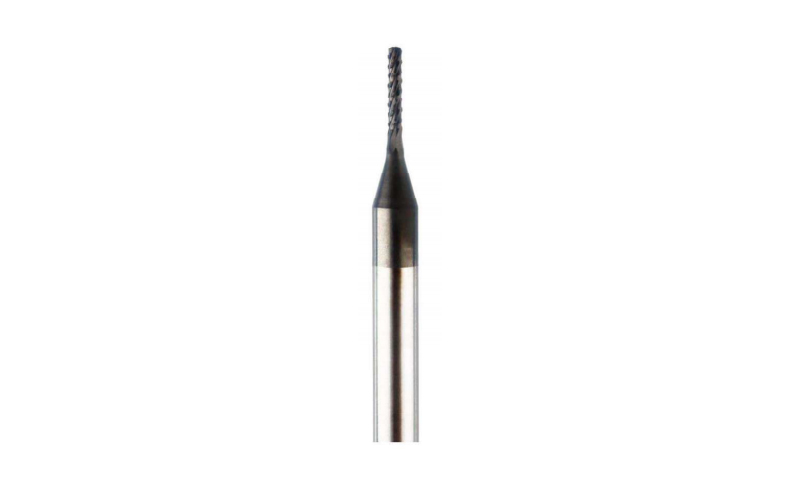

Diamond Coated Milling Cutters for FR-4 Series

Brocade film technology: CVD chemical vapor deposition

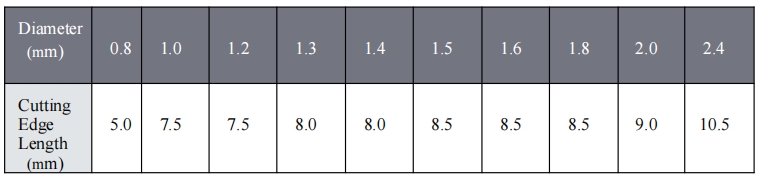

Material:Diamond Size: 0.8-2.4mm

Applicable objects: ordinary FR4, medium TG, high TG, halogen free board, thick copper board, ceramic bod, etc

Color:Black

FEATURE

Extra-long service life

with an average lifespan of processing

500-800 meters of materials

20-30 times better than ordinary milling cutte

Ultra-high hardness, wear resistance

The microhardness of ordinary steel

millingcutter is about 1600HV.The

microhardnessof diamond milling cutter

reaches 9000HV

Ultra-high machining accuracy

Only a few micrometers wera after processing,

hundreds of meters, which guarantees the

dimensional accuracy ofthe product

Ultra-high efficiency, ultra-low cost

20-30% lower cost reduction 90% shorter tool

changing time and significant increase in

machineavailability
